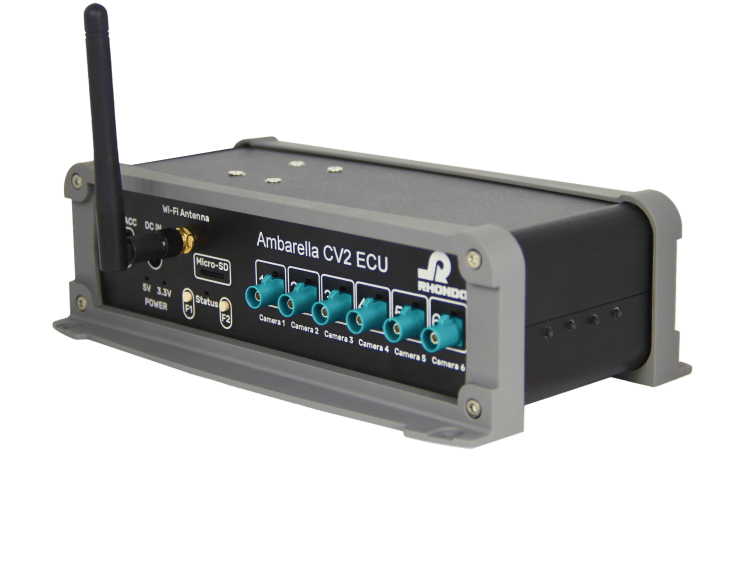

Ambarella CV2 Camera ECU – Rhonda Software – Camera Design House

AMBARELLA CV2

Camera ECU

Ready-to-integrate multi-channel imaging and multi-DNN Electronic Control Unit (ECU) platform

Talk to sales

Build a market-ready product with the multi-camera ECU

Rhonda Software offers camera engineering services based on the building-block hardware

UP TO

CAMERAS

GMSL2
PER SECOND

MILLION PIXELS

4K@60 H.265/264 VIDEO STREAMING
UNDER

WATTS

POWER CONSUMPTION

Enhance the field of view with Stereo Vision

Semantic Segmentation is the future of object detection that can be tested on the edge

CV Inference

Ambarella® CV2A SoC inside

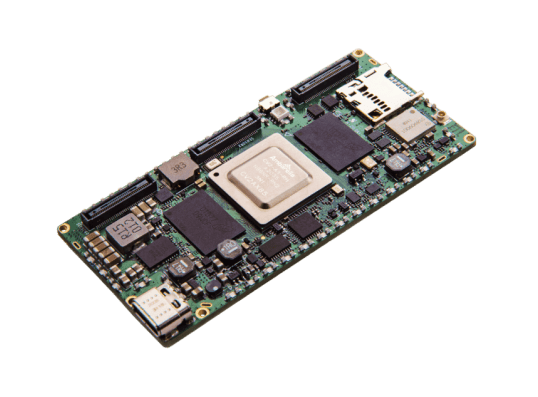

Rhonda CV2A SoM with the Ambarella CV2A SoC inside combines high-quality image processing with CVflow DNN engine and stereo vision support in a low-power design

Rhonda CV2A SoM

Tech Specs

product brief

Ambarella® CV2AX85™ SoC

Quad-core Arm® Cortex®-A53 up to 1 GHz

Up to 6 cameras

GMSL2 Fakra-Z connectors

16Gbit LPDDR4

DRAM

32GB eMMC

eMMC storage

Wi-Fi connectivity module

802.11a/b/g/n/ac

USB host & device interfaces

External GNSS / GPS

module support

External Microphone and Speaker

3.5mm jack

Rich external interfaces

Programmable user interface

Software controlled LED, buttons & switch

Battery protection

Built-in HW for discharge prevention

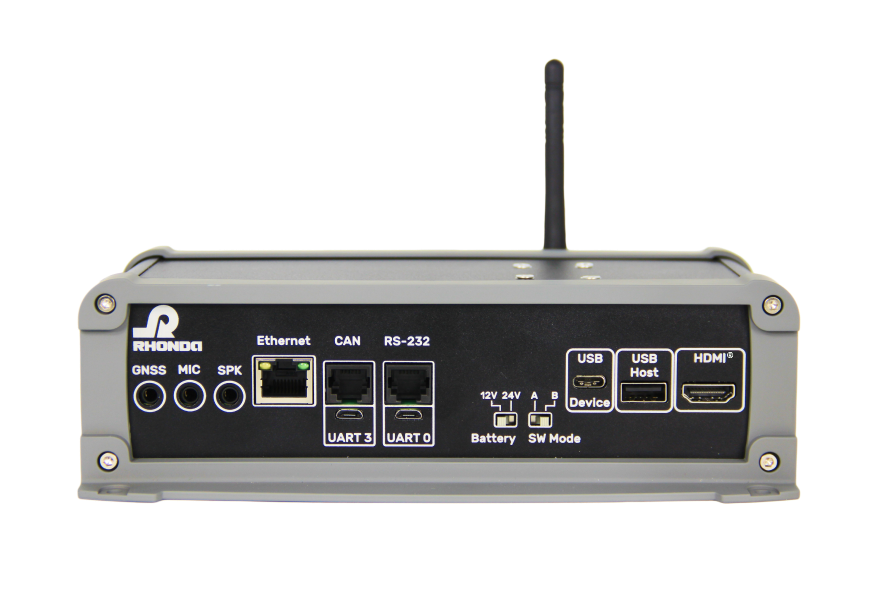

6 GMSL2 cameras

Fakra-Z coaxial-cable connectors

Power input 12-24V

2-line barrel connector
3-line: BAT + ACC (ignition) + GND

RJ45 Gigabit Ethernet

USB2.0 Host

Type-A

USB2.0 Device

Type C

External GPS/GNSS connector

External Microphone and Speaker

3.5 mm jack

CAN bus connector

Serial port

Micro-SD card slot

SDHC/SDXC

2 x USB-to-UART debug interfaces
