GMSL2 Camera EVK – Rhonda Software – Camera Design House

GMSL2 CAMERA EVK

Camera Hardware Platform

Plug-and-play assembly for evaluation and prototyping on GMSL2 camera hardware

Watch a demo
Rhonda Software demonstrates the GMSL2 camera EVK demo. With decades of experience in imaging solutions, sensor driver development, and GMSL SerDes components, Rhonda Software is now offering off-the-shelf GMSL2 solutions on the Ambarella H22 SoC that can be used with a flexible level of customization.

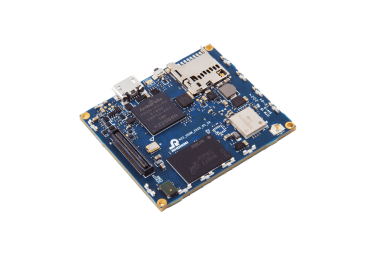

Rhonda H22 SoM is the basis of the GMSL2 EVK. The Rhonda H22 SoM is a camera hardware platform with the Ambarella's H22 SoC and major system components on one main board, and stabilized hardware that enables rapid camera prototyping and accelerates vision system development.
Back
Talk to sales

Customizing GMSL2 camera with Rhonda Software

Rhonda Software offers camera engineering services from camera hardware design to software development

UP TO

METERS

FAKRA-Z COAXIAL CABLE
UP TO

MILLION PIXELS PER SECOND

4K@30 H.264 VIDEO STREAMING
UNDER

WATTS

POWER CONSUMPTION*
*Lab measured end-to-end power consumption with 1 camera capture and H264 4K@30 streaming to USB host: 2.75W

Ambarella® H22 SoC inside

Rhonda H22 SoM with the Ambarella H22 SoC inside minimizes power consumption while maximizing performance in a small form factor

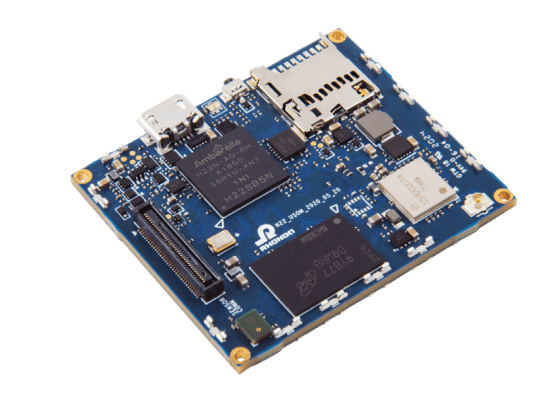

Rhonda H22 SoM

Tech Specs

Ambarella® H22™ SoC

Quad-core Arm® Cortex®-A53 up to 1 GHz

Sony IMX577 image sensor

12 Mpixel, 1/2.3" optical format

4K@30 H.264

encoded video streaming via UVC

GMSL2 serializer & deserializer

up to 15m transmission distance

FAKRA-Z

coaxial cable connector format

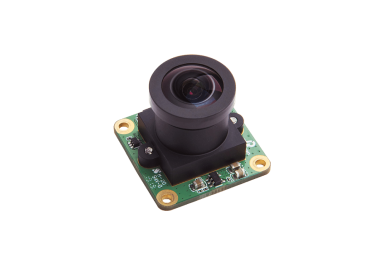

Sony Exmor Optical Module

learn more

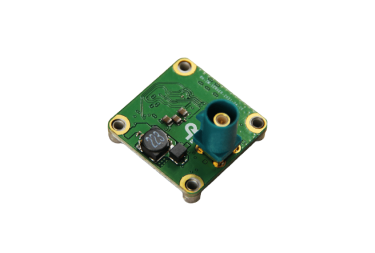

GMSL2 Serializer Board

learn more

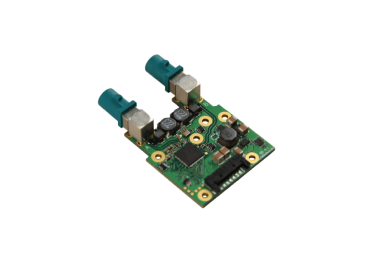

GMSL2 Deserializer Board

learn more

H22 System on a Module

learn more

Related products

Evaluate GMSL2

Make a request

Tell us about your project

    This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

    News & Media

    Automotive industry applications rely heavily on the GMSL technology from Analog Devices due to its flexibility and performance. GMSL cameras are prominent in in use cases that require...

    Article

    With the growing demand for embedded vision, higher data transmission rates and integrated processes, Rhonda Software has released a GMSL2 Camera EVK to help accelerate time to market...

    Tech insight

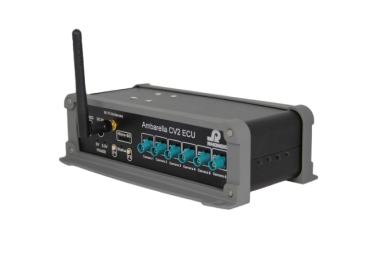

    Rhonda Software launched a multi-channel Electronic Control Unit (ECU) platform with the purpose to accelerate product development of smart automotive solutions.
